520 X 950Mm 20m Span Resistant Folding Truss Triangular Spigot Connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Heavy Truss | Size Of Tube | 50*4mm |
|---|---|---|---|
| Size Of Truss | 1-4m , 520 X 950 Mm | Material | Aluminum 6061-T6 |
| Color | Custmozied | Connector | Spigot |
| Storage | Folding | Range | Outdoor/Big Event |
| Highlight | 20m Span Resistant Folding Truss,Triangular Spigot Folding Truss |
||
Product Description

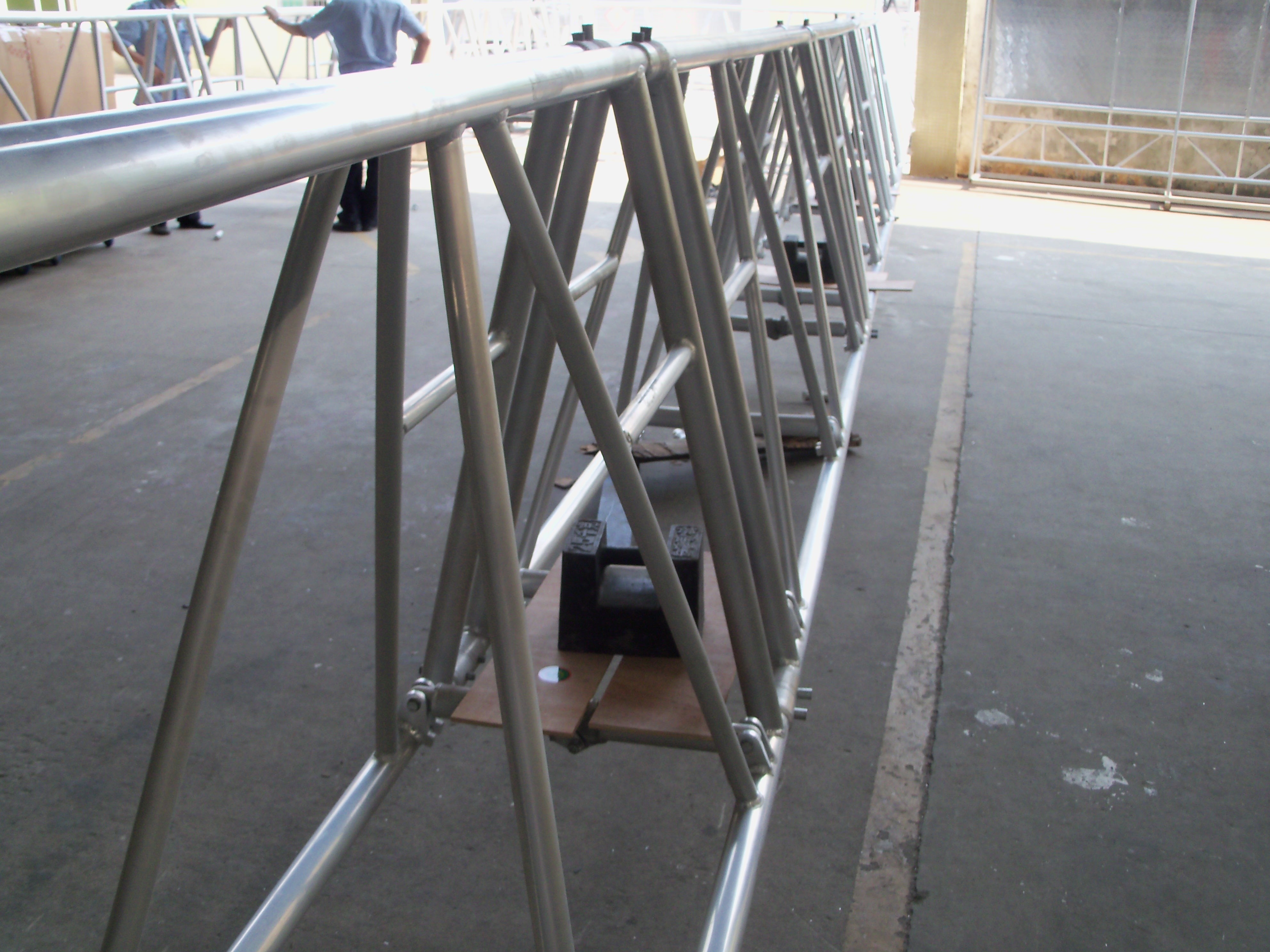

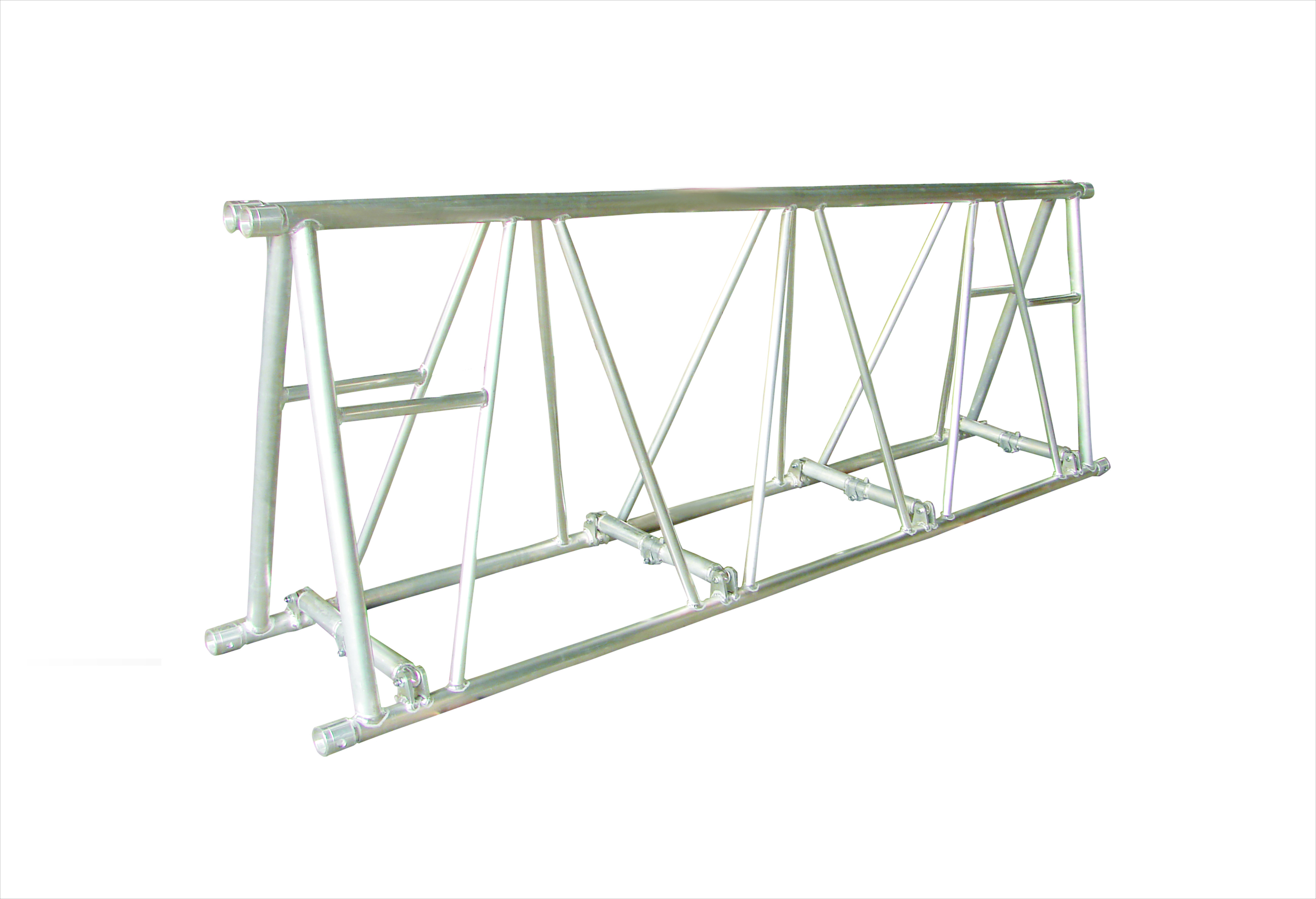

Aluminium Triangular 520 X 950 Mm 20m Span Resistant Folding Truss
Product Description:
Foldable aluminum trusses are usually used for performances, chandeliers, concerts and exhibitions. We have a variety of sizes to meet your different requirements. Spigot foldable aluminum truss structure can provide a transportation saving solution for the folding truss series.Portable truss system provides the best strength for longer spans and applications requiring high load resistance. Due to the folded design, these collapsible truss require a smaller volume when stored or transported. However, these aluminum platform truss are limited to horizontal loads and indoor use.
This foldable truss system was built for mobile use with large spans and high loads. When folded the transportation volume is reduced by 50%. The folding design scheme of adopting self-lock folding end and pattern of spigot bolt ensue smart installation and simiplicity, and fully avoid butt joint fault of the wrong trusses when the are desinged.Meanwhile ,we could use"+"type or thicker alloy aluminum tube to make such style according to your need.
Product Specifications:
| FT5295 Allowable Loading | |||||
| 6061-T6 50*4mm tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| ( M ) | ( ft ) | ( KG ) | ( KG ) | ( KG ) | ( mm ) |
| 4.0 | 13.1 | 2809.0 | 702.2 | 2756.2 | 4.0 |
| 5.0 | 16.4 | 2809.0 | 561.4 | 2319.8 | 6.0 |
| 6.0 | 19.7 | 2809.0 | 468.2 | 1932.8 | 8.0 |
| 7.0 | 23.0 | 2809.0 | 401.3 | 1657.2 | 10.0 |
| 8.0 | 26.2 | 2809.0 | 351.1 | 1342.0 | 20.0 |
| 9.0 | 29.5 | 2621.5 | 291.3 | 1313.0 | 31.0 |
| 10.0 | 32.8 | 2358.4 | 235.8 | 1181.0 | 40.0 |
| 11.0 | 36.0 | 2149.0 | 195.6 | 1073.6 | 50.0 |
| 12.0 | 39.3 | 1964.2 | 163.7 | 984.7 | 61.0 |
| 13.0 | 42.6 | 1819.0 | 139.9 | 909.0 | 74.0 |
| 14.0 | 45.9 | 1687.8 | 120.6 | 843.9 | 89.0 |
| 15.0 | 48.2 | 1570.8 | 104.7 | 787.6 | 103.0 |
| 16.0 | 52.5 | 1478.4 | 92.4 | 738.3 | 118.0 |
| 17.0 | 55.7 | 1391.3 | 81.8 | 695.2 | 136.0 |
| 18.0 | 59.0 | 1314.7 | 73.0 | 656.5 | 154.0 |
| 19.0 | 52.3 | 1237.3 | 65.1 | 622.2 | 171.0 |
| 20.0 | 65.6 | 1179.2 | 59.0 | 590.5 | 195.0 |
Advantages
1. Easy to assemble and disassemble.
2. aluminum light truss is light in weight, easy to carry, store and transport.
3. Aluminum structure enhances durability and corrosion resistance.
4. Durable and strong carrying capacity.
Packing Photo
Why choose LEDIKA Truss ?
1. 22-year experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ :
Q: Does LEDIKA accept OEM/ODM service ?
A: Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design.
Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.
Q: What is the delivery time ?
A: 7-15 days for batch goods regular size truss are in stock . Urgent order is also available.
Q: What is your trade terms?
A: Our trade terms are Ex-work , FOB , CNF & CIF
Q: Where is your factory and how can I visit your company ?
A : Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory.
Q: What advantage do you have to make me choose LEDIKA stage truss ?
A : We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
