High Hardness Aluminum Spigot Truss For Large Event Performance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Spigot Truss | Size Of Tube | 50*3mm |
|---|---|---|---|
| Size Of Truss System | Customized | Material | Aluminum 6081-T6 |
| Application | Outdoor | Events | Exhibition,Concert |
| Color | Silver | Feature | Heavy Duty, Durable |
| Highlight | High Hardness Aluminum Spigot Truss,Large Event Aluminum Spigot Truss |
||
Product Description

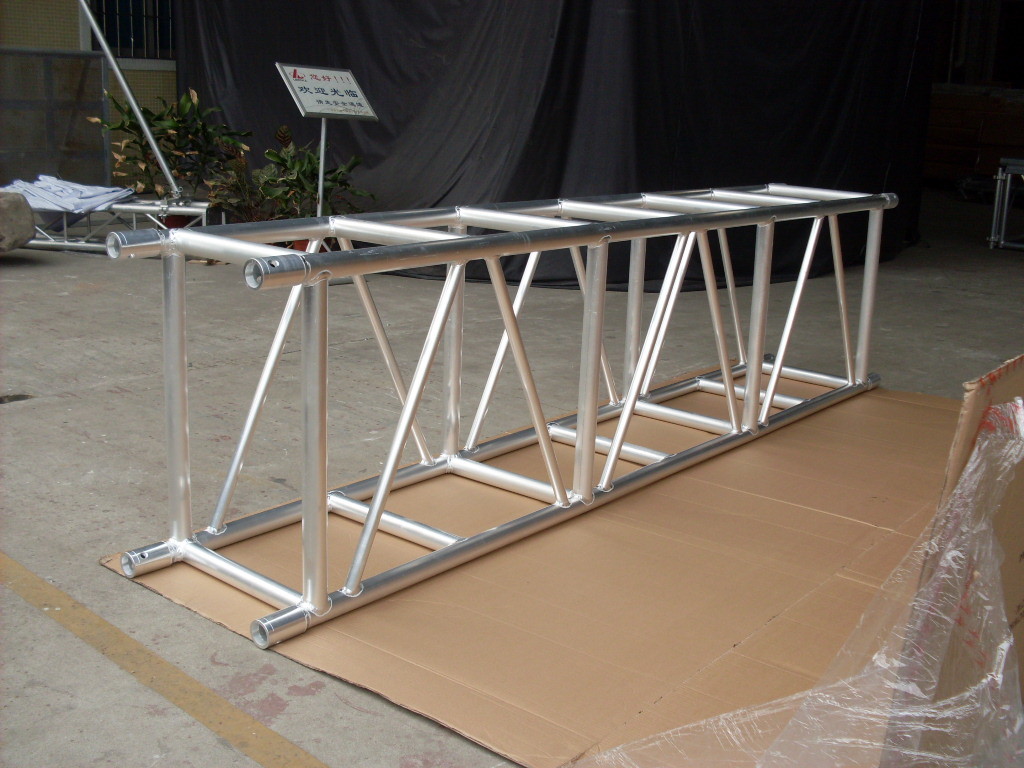

Outdoor Large Event Performance Heavy Duty Aluminum Spigot Truss
Product Description:
This truss is heavy duty truss. Material 6061-T6, Main tubes Φ50×3mm, Braces Φ50×2mm and Φ30×2mm ,including 4 sides accessories
1. Heavy duty truss is made of high hardness aluminum. Material: 6061-T6.
2. Beautiful appearance and durable.
3. The assembly and positioning are accurate and simple.
4. Suitable for various indoor and outdoor performances.
5. We can manufacture the size according to your request.
6. The price is reasonable.
7. OEM/ODM is welcome.
Product Specifications:
| SQS5276 Allowable Loading | |||||
| 6061-T6 50*3mm "+"plus tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL |
Unitformly |
Centre point load(CPL) | DEFLECTION | |
| m | ( ft ) | kg | kg/m | kg | (mm) |
| 2.0 | 6.5 | 4109.2 | 2054.6 | 3914.2 | 1.0 |
| 3.0 | 9.8 | 4098.0 | 1366.0 | 3903.5 | 4.0 |
| 4.0 | 13.1 | 4085.4 | 1021.4 | 3177.1 | 7.0 |
| 5.0 | 16.4 | 4074.8 | 815.0 | 2658.6 | 10.0 |
| 6.0 | 19.7 | 4064.3 | 677.4 | 2205.4 | 15.0 |
| 7.0 | 23 | 3760.0 | 537.1 | 1880.0 | 20.0 |
| 8.0 | 26.2 | 3265.2 | 408.1 | 1633.9 | 26.0 |
| 9.0 | 29.5 | 2881.5 | 320.2 | 1442.1 | 33.0 |
| 10.0 | 32.8 | 2579.9 | 258.0 | 1287.3 | 40.0 |
| 11.0 | 36 | 2313.9 | 210.4 | 1158.9 | 50.0 |
| 12.0 | 39.3 | 2103.6 | 175.3 | 1051.8 | 59.0 |
| 13.0 | 42.6 | 1917.7 | 147.5 | 959.8 | 70.0 |
| 14.0 | 45.9 | 1759.6 | 125.7 | 880.5 | 81.0 |
| 15.0 | 49.2 | 1617.4 | 107.8 | 811.0 | 93.0 |
| 16.0 | 52.5 | 1492.3 | 93.3 | 749.5 | 105.0 |
| 17.0 | 55.8 | 1383.2 | 81.4 | 694.6 | 119.0 |
| 18.0 | 59.1 | 1286.0 | 71.4 | 645.0 | 134.0 |
| 19.0 | 62.4 | 1194.0 | 62.8 | 600.0 | 149.0 |
| 20.0 | 65.7 | 1111.3 | 55.6 | 559.0 | 165.0 |
| 21.0 | 69 | 1041.9 | 49.6 | 521.3 | 182.0 |
| 22.0 | 72.3 | 960.5 | 43.7 | 486.9 | 199.0 |
| 23.0 | 75.6 | 897.7 | 39.0 | 454.5 | 218.0 |
| 24.0 | 78.9 | 841.4 | 35.1 | 424.7 | 237.0 |
Advantages
1. 15 years perfessional stage truss big events experience since 2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games, Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
Why choose LEDIKA Truss ?
1. 16-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ :
Q: Does LEDIKA accept OEM/ODM service ?
A: Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design.
Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.
Q: What is the delivery time ?
A: 7-15 days for batch goods regular size truss are in stock . Urgent order is also available.
Q: What is your trade terms?
A: Our trade terms are Ex-work , FOB , CNF & CIF
Q: Where is your factory and how can I visit your company ?
A : Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory.
Q: What advantage do you have to make me choose LEDIKA stage truss ?
A : We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
