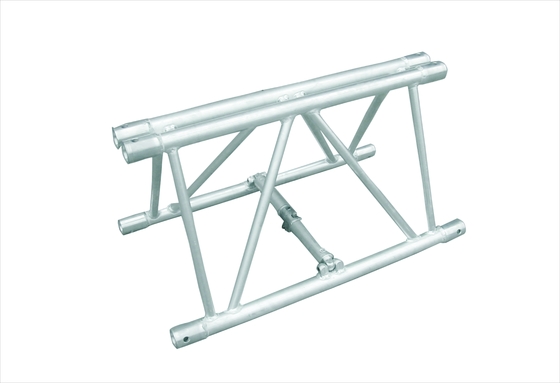

4mm Thickness Folding Truss 520 X 950mm For Outdoor Activities
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Heavy Truss | Size Of Tube | 50*4mm |
|---|---|---|---|
| Size Of Truss | 1-4m , 520 X 950 Mm | Material | Aluminum 6082-T6 |
| Color | Custmozied | Connector | Spigot |
| Storage | Folding | Range | Outdoor/Big Event |
| Highlight | 4mm Thickness Folding Truss,Folding Truss 520 X 950mm,Spigot Folding Truss |
||
Product Description
520 X 950mm 4mm Thickness Outdoor Folding Truss Activities Folding Truss
Product Description:

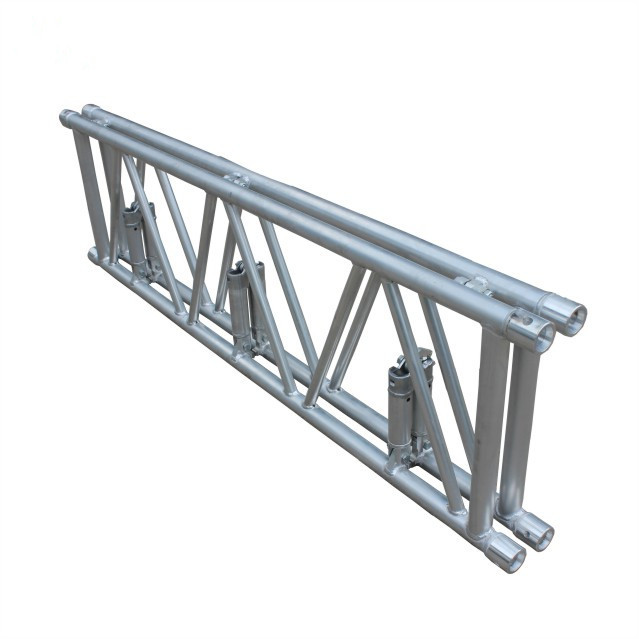

This foldable truss system is designed for large span and high load mobile use. After folding, the transportation volume is reduced by 50%. The folding design scheme adopts self-locking folding end and bolt pattern, which is flexible and simple to install, and fully avoids the docking failure of wrong truss during design. At the same time, we can use "+" or thicker alloy aluminum tubes to make this style according to your needs.
Advantages
1. The truss is made of high hardness aluminum.
2. Beautiful appearance and durable.
3. Suitable for various indoor and outdoor performances.
4. We can manufacture the size according to your requirements.
Application
1. concert
2. wedding tent
3. exhibition
Product Specifications:
| FT5295 Allowable Loading | |||||
| 6082-T6 50*4mm tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| ( M ) | ( ft ) | ( KG ) | ( KG ) | ( KG ) | ( mm ) |
| 4.0 | 13.1 | 2809.0 | 702.2 | 2756.2 | 4.0 |
| 5.0 | 16.4 | 2809.0 | 561.4 | 2319.8 | 6.0 |
| 6.0 | 19.7 | 2809.0 | 468.2 | 1932.8 | 8.0 |
| 7.0 | 23.0 | 2809.0 | 401.3 | 1657.2 | 10.0 |
| 8.0 | 26.2 | 2809.0 | 351.1 | 1342.0 | 20.0 |
| 9.0 | 29.5 | 2621.5 | 291.3 | 1313.0 | 31.0 |
| 10.0 | 32.8 | 2358.4 | 235.8 | 1181.0 | 40.0 |
| 11.0 | 36.0 | 2149.0 | 195.6 | 1073.6 | 50.0 |
| 12.0 | 39.3 | 1964.2 | 163.7 | 984.7 | 61.0 |
| 13.0 | 42.6 | 1819.0 | 139.9 | 909.0 | 74.0 |
| 14.0 | 45.9 | 1687.8 | 120.6 | 843.9 | 89.0 |
| 15.0 | 48.2 | 1570.8 | 104.7 | 787.6 | 103.0 |
| 16.0 | 52.5 | 1478.4 | 92.4 | 738.3 | 118.0 |
| 17.0 | 55.7 | 1391.3 | 81.8 | 695.2 | 136.0 |
| 18.0 | 59.0 | 1314.7 | 73.0 | 656.5 | 154.0 |
| 19.0 | 52.3 | 1237.3 | 65.1 | 622.2 | 171.0 |
| 20.0 | 65.6 | 1179.2 | 59.0 | 590.5 | 195.0 |
Packing Photo
Why choose LEDIKA Truss ?
1. 16-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ :
Q: Does LEDIKA accept OEM/ODM service ?
A: Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design.
Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.
Q: What is the delivery time ?
A: 7-15 days for batch goods regular size truss are in stock . Urgent order is also available.
Q: What is your trade terms?
A: Our trade terms are Ex-work , FOB & CIF
Q: Where is your factory and how can I visit your company ?
A : Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory.
Q: What advantage do you have to make me choose LEDIKA stage truss ?
A : We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
