xModel No. | JL-4I | Model Name | Caster Wheels |
---|---|---|---|
Material | Steel、PVC | Size | 4‘’ Inch |
Loading Weight | 10-30KG | Usage | Work Bench;Scaffolding;Flight Case |
Highlight | 30KG Loading Caster Wheels,Flight Case Scaffolding Caster Wheels |

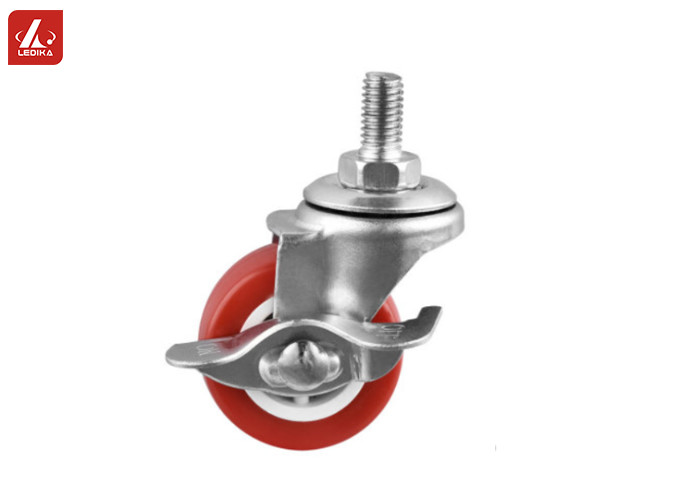

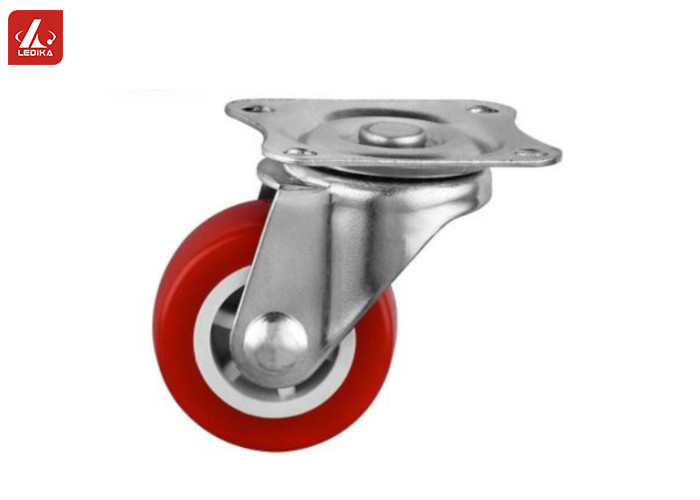

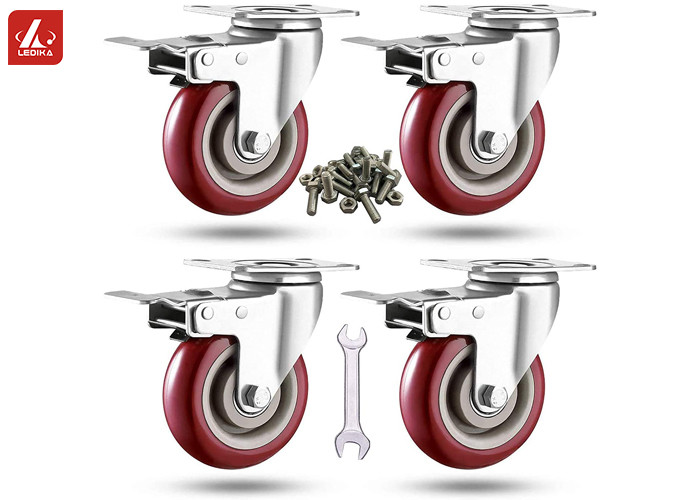

30KG Loading Safe Duty Casters For Flight Case And Scaffolding
Product Description:
Castors allow smooth conveying & directional change with minimal damage to delicate surfaces. Specified throughout the glass handling industry for conveying glass through wet, corrosive, dusty & high temperature processes. We recommend fitting the castors in a regular, alternate pattern to reduce bias & provide a neutral conveying plane. Replacement balls available as spares. Alternative materials can be retro-fitted for extended durability & service.
Product Name | red color PVC caster wheel |
Activity Mode | swivel caster |
Model Number | JL-4I |
Wheel Material | PU/PVC |
Wheel Color | red |
Bearing | pain bearing |
Bracket Options | black paint bracket or zinc plated bracket |
Mounting Type | plate type |
Wheel Dia | 2"(50mm) |
Wheel Width | 22mm |
Load Capacity | 30kg |
Plate Size | 59x47mm |
Bolt Hole Spacing | 46x35mm |
Bolt Hole Diameter | 6.3mm |
Load Height | 65mm |
Plate Thickness | 3mm |
Fork Thickness | 2.5mm |
Application | Suitable for multi-kinds of ground usages. Widely usage in medical &nursing equipment, food-process, factory material handling warehousing, storage logistic and machine manufacturing industries. |
Resistant | chemical attack and radiation |
Usage Temperature | -350C~800C |
Lead Time | 25 days for a 20GP,35-40 days for a 40HC |
Loading Port | Nansha Guangzhou,China |
Payment Terms | T/T,L/C |
MOQ | 100pcs,sample order will be acceptable |
