TUV Aluminum Square Truss Triangle Roof Trussing System 500mm - 4000mm
Place of Origin | Guangzhou ,China |
---|---|
Brand Name | LEDIKA |
Certification | ISO9001 |
Model Number | TRB300 |
Minimum Order Quantity | 1 set |
Price | FOB,EXW |
Packaging Details | Air bubble film or carton, or Customized |
Delivery Time | 2-3 weeks |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 1000 pcs/per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Black,Silvery Or Customer Request | Material | Aluminum Alloy 6082-T6/6061-T6 |
---|---|---|---|
Application | Concert,Exhibition,Events,Wedding,etc | Main Tube | 50*2mm / 50*3mm |
Shape | Triangle | Size | 300*300mm,400*400mm Customized Available |
Length | Available,0.5-4.0m And Customized | Feature | Heavy Load,Convenient To Install And Dismounting,easy To Carry & Assemble & Take Apart,Good Welding,Non-rust |
Brace Tube | 20*2mm, 25*2mm, 30*2mm | Connection Way | Screw Connector |
Packing | Air Bubble Film Or Carton | ||
Highlight | TUV Aluminum Square Truss,4000mm Aluminum Square Truss,Aluminum 6082 Triangle Roof Truss |
TUV Aluminum Square TrussTriangle Roof Trussing System 500mm - 4000mm
Description

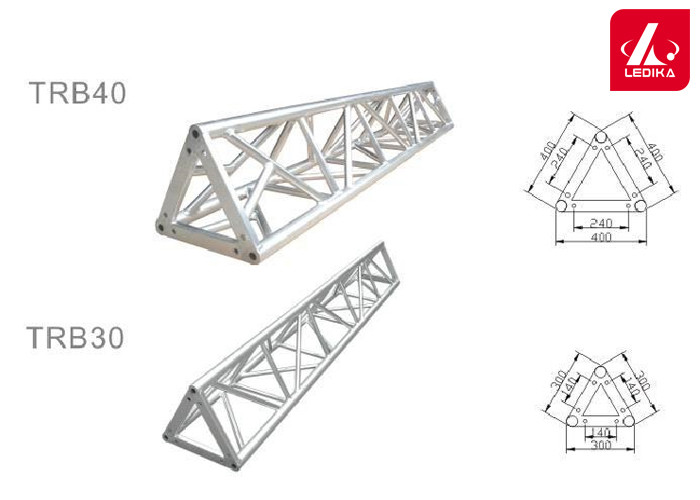

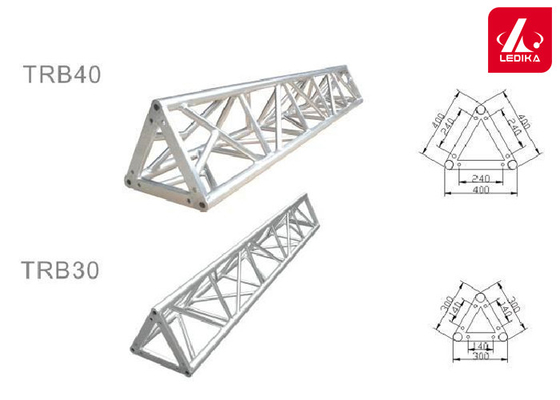

1. code: TRB300
2. Section size: 300*300 triangle
3. Material: 6082-T6
4. Main tube: diameter 50*3mm
5. Braces: diameter 30*2mm
6. Length: 500mm - 4000mm
TRB30 Allowable Loading | |||||
6082-T6/6061-T6 50*3mm tube as main tube 25*2mm as brace tube | |||||
Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
m | ( ft ) | kg | kg/m | kg | (mm) |
4 | 13.1 | 781.4 | 195.4 | 390.7 | 5 |
5 | 16.4 | 624.8 | 125 | 312.4 | 13 |
6 | 19.7 | 522.7 | 87.1 | 261.4 | 22 |
7 | 23 | 443.5 | 63.4 | 221.8 | 33 |
8 | 26.2 | 387.2 | 48.4 | 193.6 | 45 |
9 | 29.5 | 340.6 | 37.8 | 170.7 | 59 |
10 | 32.8 | 308 | 30.8 | 154 | 75 |
11 | 36 | 280.7 | 25.5 | 140.8 | 92 |
12 | 39 | 253.4 | 21.1 | 126.7 | 110 |
Product Advantages
1. 20 years perfessional stage truss big events experience since 2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games,
Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
Applications:
1.Celebration services
Opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon cutting, the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;
2.Business services
Press conferences, new product launches, the various types conferences such as for investment,order, awards, the annual meeting, customer appreciation, sightseeing exchanges
3.Performances service
Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
Why should you choose our products?
Quality: We have introduced advanced equipment, trained high-quality welding technicians and choose superior raw materials, we are going to provide qualified and safe products to our consumers.
Price: In the context of high quality and reasonable profits, offer our consumers the most competitive price. We won’t lower quality to satisfy consumers with expected price.
Service: Treat our consumers sincerely! Try our best to provide the convenient and quick communication channel, establish a good reputation. We will obey to our promises and act effectively.
Creative: Offering regional design, developing new products and improving it continuously is our goal. We are able to provide more convenient, flexible and safer equipments for shows and events! If you are going aluminum truss and accessories, you can trust and choose us.
