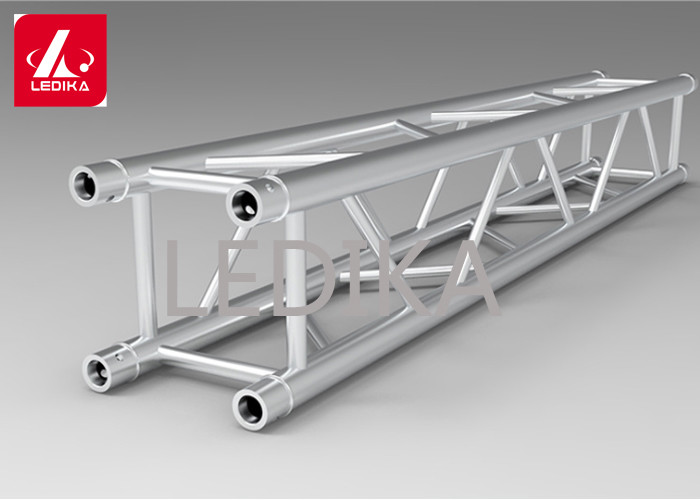

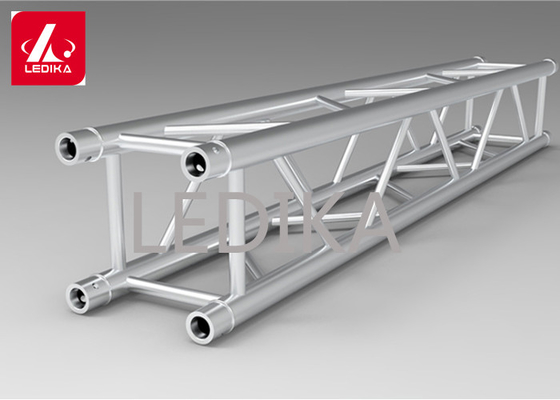

290*290mm 6082 T6 Aluminum Square Truss For Celebrations
Place of Origin | Guangzhou ,China |
---|---|
Brand Name | LEDIKA |
Certification | ISO9001 |
Model Number | SQS290 |
Minimum Order Quantity | 1 set |
Price | FOB,EXW |
Packaging Details | Air bubble film or carton, or Customized |
Delivery Time | 2-3 weeks |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 1000 pcs/per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel No. | SQS290 | Material | Aluminum 6061-T6 |
---|---|---|---|
Size | 290*290mm | Height | Customized |
Color | Black, Silver, Red, Etc. | Connection | SPIGOT |
Main Tube | 50*3mm | Brace Tube | 30*2mm;25*2mm;20*2mm |
Vice Tube Thickness | φ20*2mm; φ25*2mm; φ50*2mm; φ50*3mm | Key Words | Outdoor Roof Truss;Crank Truss Stands,stage Truss Systems, Aluminum Truss Systems,Truss Shape Ladder Truss; Triangular Truss; Square Truss; Arch Truss; Circle Truss; Folding Truss |
Feature | Non-rust, Fireproof, Hard Wearing, Recycle,Easy To Assemble And Dismantle | Usage | Concert; Events; Exhibition; Wedding; Performance; Show And So On |
Highlight | T6 Aluminum Square Truss,6082 Aluminum Square Truss,Spigot Outdoor Roof Truss |
290*290mm 6082-T6 Square Truss Aluminium Spigot Truss for Celebrations
Introduction
Aluminum Truss uses international standard 6082 material, with the advantages of beautiful appearance,small volume, easy to set up and transport, itself also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to the customers' requirements.
Applications
To Large-scale performances, large-scale exhibitions, celebrations, meetings, real estate, car park, government, television activities.We provide all the planning, art production, site decoration, like a one-stop service. We have number of successful planning and implementation of major activities, the opening and closing ceremonies, awards ceremony; important groundbreaking ceremony of the project and the completion of the ceremony, the property market opening, press releases, product promotion and brand communication, the new car market activities.
Specification
Size of Truss | 290*290mm |
Diameter of Main Tube | 50mm |
Thickness of Main Tube | 3mm |
Diameter of Brace Tube | 20mm |
Thickness of Brace Tube | 2mm |
Size of Joint | 50x40mm |
Connection | Spigot |
Span | 12m |
Max Loading | 43KG |
SQS 290 Allowable Loading | |||||
6082-T6 50*3mm tube as main tube 20*2mm as brace tube | |||||
Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
m | ( ft ) | kg | kg/m | kg | (mm) |
4 | 13.1 | 809.6 | 202.4 | 404.3 | 8 |
5 | 16.4 | 808.5 | 161.7 | 404.3 | 16 |
6 | 19.7 | 808.5 | 134.8 | 404.3 | 27 |
7 | 23 | 808.5 | 115.5 | 404.3 | 43 |
8 | 26.2 | 788.5 | 98.6 | 394.2 | 63 |
9 | 29.5 | 699.9 | 77.8 | 350.4 | 80 |
10 | 32.8 | 631.4 | 63.1 | 315.7 | 99 |
11 | 36 | 576 | 52.4 | 288 | 120 |
12 | 39.3 | 526.7 | 43.9 | 263.3 | 142 |
Why choose LEDIKA-truss ?
1.20-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
